Rotary Tablet Press Machine Capable of High Speed Tablet Compression GZPS45 for Pharmaceutical and Chemical Applications

Rotary Tablet Press Machine Capable of High Speed Tablet Compression GZPS45 for Pharmaceutical and Chemical Applications

380V Rotary Tablet Press Machine

SGS CE Certified Tablet Press Machine

Double Press Rollers Pill Press Machine

Place of Origin:

SHANGHAI, CHINA

Brand Name:

Tianfeng

Certification:

CE ISO

Model Number:

GZPS45

Contact Us
Request A Quote
Product Details
Model NO.:
GZPS660
Voltage:
380V
No. Of Stations:
45, 55, 75
Max. Tablets Output:
405000, 495000, 675000 Pcs/hour
Max. Pressure:
100 KN
Max. Pre-pressure:
20 KN
Max. Tablet Diameter:
Round Tablet: 25, 16, 13 Mm; Special Shaped Tablet: 25, 19, 16 Mm
Max. Filling Depth:
20 Mm
Max. Tablet Thickness:
8 Mm
Max. Turret Speed:
75 1/min
Main Motor Power:
11 KW
Machine Height:
1850 Mm
Host Dimensions:
1704*1380*1926 Mm
Control Cabinet Dimensions:
750*550*1750 Mm
Machine Net Weight:
Host: 3980 Kg; Control Cabinet: 240 Kg
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Welcome to consult
Packaging Details
export plywood case
Delivery Time
30-45 working days
Product Description
Applications

This double-sided rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, food, and electronic industries.

Key Features
  • High-speed operation with multiple punches and double press rollers for mass production
  • GMP-compliant stainless steel construction with hardened rotary turret for wear resistance
  • Precision tableting system with twice compression forming for consistent tablet weight
  • Three-impeller force feeder enhances granule flow and filling precision
  • Double-side lifting tooling track ensures balanced stress and wear resistance
  • Advanced electronic control system with imported components for process monitoring
  • First waste rejection controller with rotary encoder and pressure sensor
  • Automatic pressure lubrication system prevents tablet contamination
  • Specialized oil-proof, dust-proof, and noise-proof design
Note

The GZPS660 model features an advanced operation system with tablet weight control, allowing easy adjustment of main pressure, pre-pressure, and filling depth without handwheels. It records all process parameters for each production batch and provides effective hardness and weight monitoring.

Technical Specifications
Model GZPS-45 GZPS-55 GZPS-75
No. of Stations 45 55 75
Max. Tablets Output (pcs/hour) 405,000 495,000 675,000
Max. Pressure (kN) 100 100 100
Max. Pre-pressure (kN) 20 20 20
Max. Tablet Diameter (mm) Round: 25
Special: 25
Round: 16
Special: 19
Round: 13
Special: 16
Max. Filling Depth (mm) 20 20 20
Max. Tablet Thickness (mm) 8 8 8
Max. Turret Speed (1/min) 75 75 75
Main Motor Power (kW) 11 11 11
Machine Dimensions (mm) Host: 1704×1380×1926
Control Cabinet: 750×550×1750
Machine Weight (kg) Host: 3980
Control Cabinet: 240
Product Images

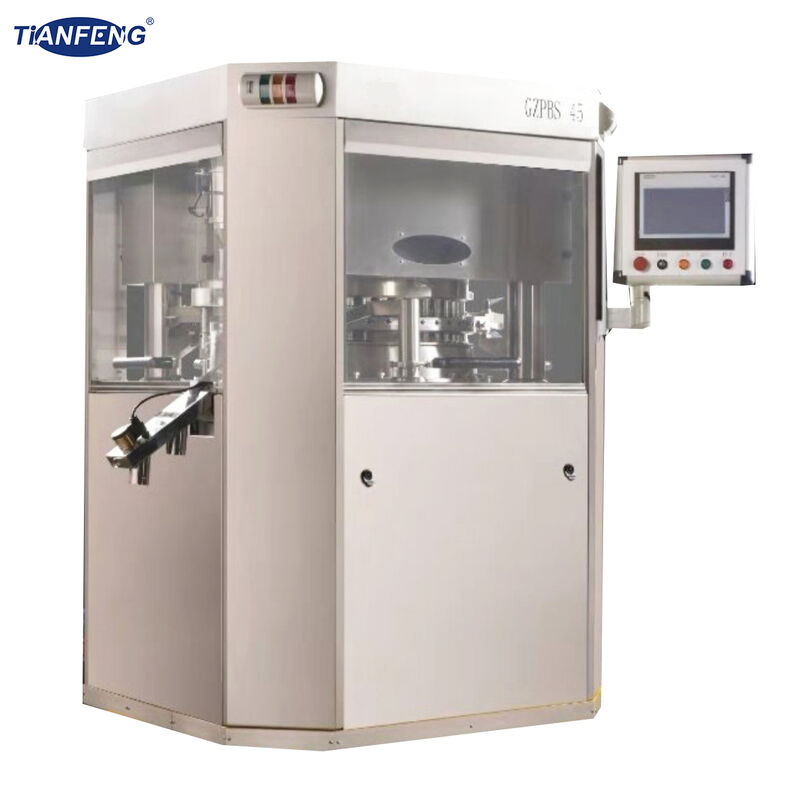

Rotary Tablet Press Machine Capable of High Speed Tablet Compression GZPS45 for Pharmaceutical and Chemical Applications
