Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW15D ZPW17D ZPW19D
Video
Video
Video

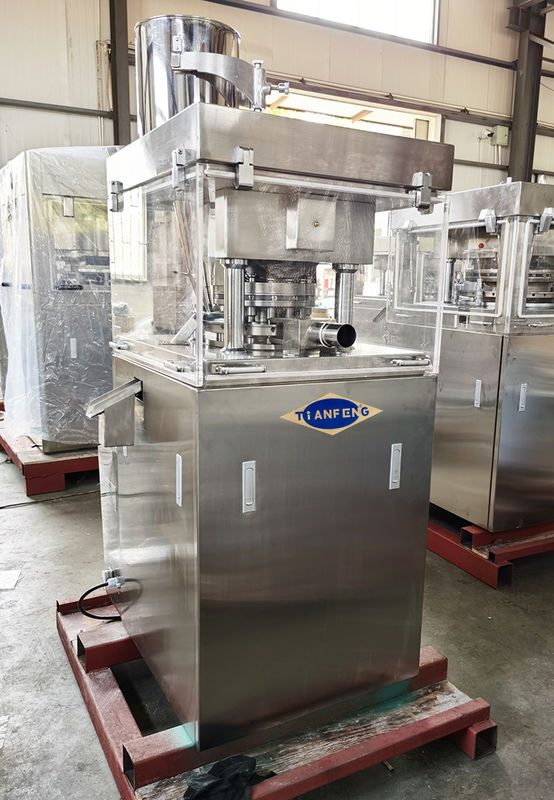

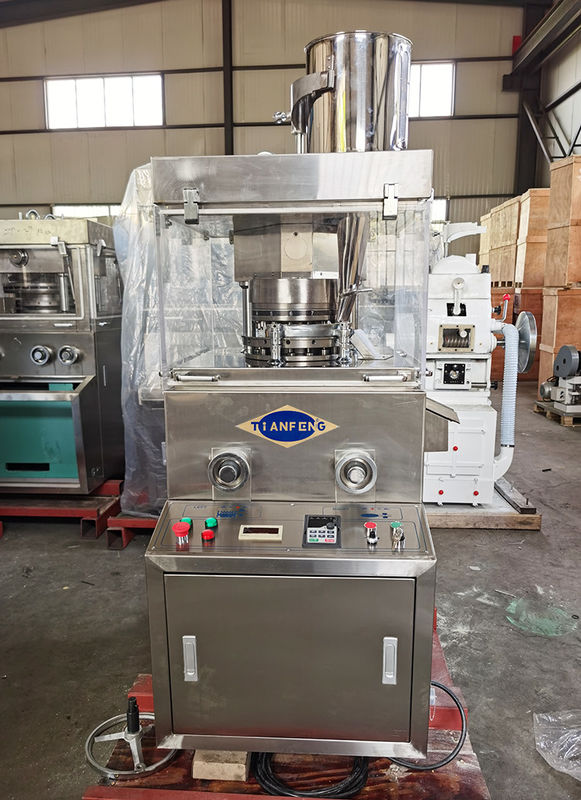

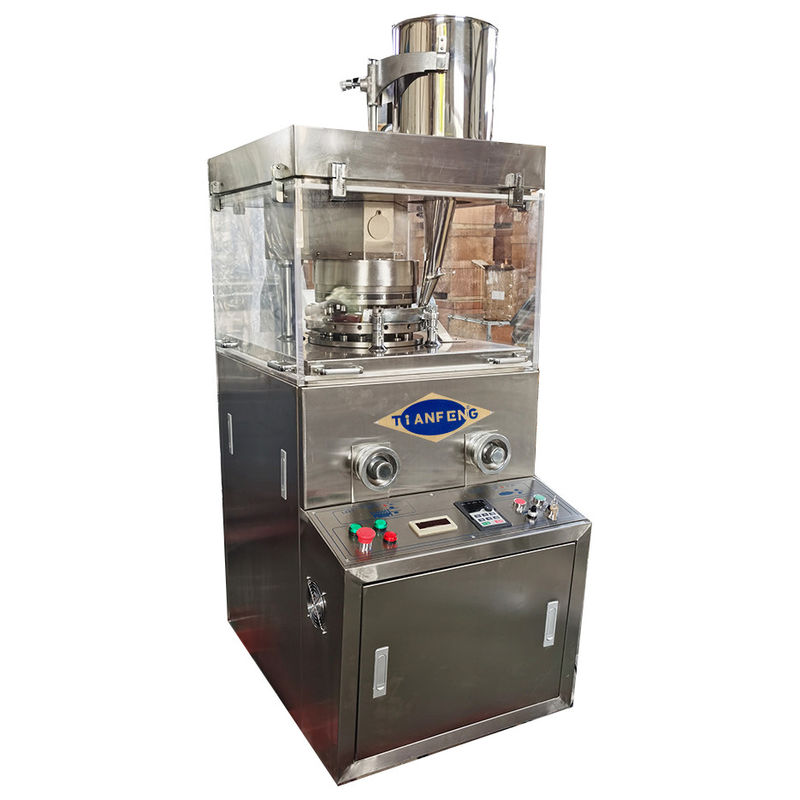

Pharmaceutical Pill Press Tablet Compression Machine
This machine is a single-press automatic rotating, continuous tableting machine, which compresses granular raw materials into various tablets. It is mainly used in the production of tablets in the pharmaceutical industry. It is also suitable for chemical, food, electronics and other industrial sectors. The outer casing is a fully enclosed form. The material is stainless steel. The internal table is made of stainless steel. The surface of the turntable is specially treated to maintain the surface gloss To prevent cross-contamination and meet GMP requirements. The doors and windows equipped with transparent glass can clearly observe the state of the pressing, and can be fully opened, which is easy for internal cleaning and maintenance. All controllers and operating parts are reasonably arranged. The frequency conversion speed control device is used for electrical speed control, which is convenient to operate, stable in rotation, safe and accurate. All transmission devices are arranged inside the machine to keep the parts clean. Equipped with overload protection device, when the pressure is overloaded, it can automatically stop. This machine is equipped with an electromagnetic brake motor and other safety protection devices, which can also be adjusted and operated during operation.
Main Feature:
1. The speed is variable frequency speed regulation, which can be adjusted arbitrarily;
2. The test machine and adjustment work can be completed without stopping the machine;
3. All controllers and operating parts are reasonably arranged and easy to operate;
4. Stable rotation, stable performance, safe and accurate, suitable for pressing all kinds of tablets.
Technical parameter:
| Dies (sets) | 15 | 17 | 19 |
| Max. Pressure (kn) | 60 | 60 | 60 |
| Max. dia. of tablet (mm) | 25 | 20 | 12 |
| Max. Depth of fill (mm): | 15 | 15 | 15 |
| Max. Thickness of largest table (mm) | 6 | 6 | 6 |
| Production capacity (pcs/h) | 38000 | 40,000 | 42000 |
| Turret speed (r/min) | 36 | 37 | 37 |
| Motor power (kW) | 3 | 2.2/960, 380V/50 | 2.2 |
| Overall size (mm) | 615 x 890 x 1,415 | 615 x 890 x 1,415 | 615 x 890 x 1,415 |
| Weight (kg): | 800 | 800 |
800 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped tablet press machine ZPW15D ZPW17D ZPW19D by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
