Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
GZP5 GZP7 GZP9 GZP10 GZP12
Main uses

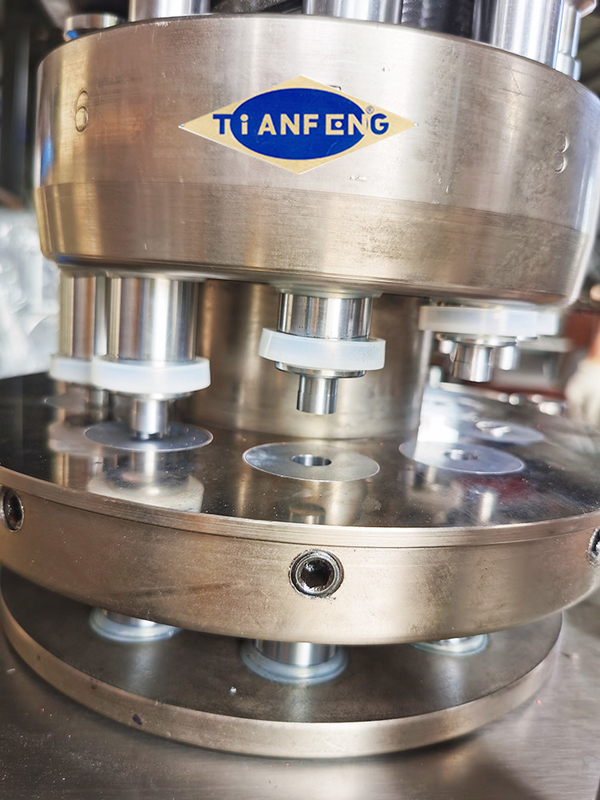

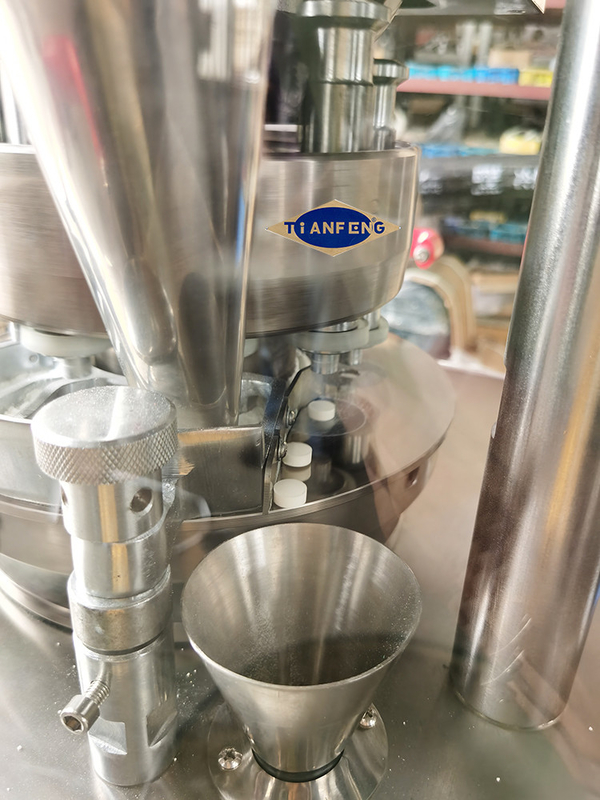

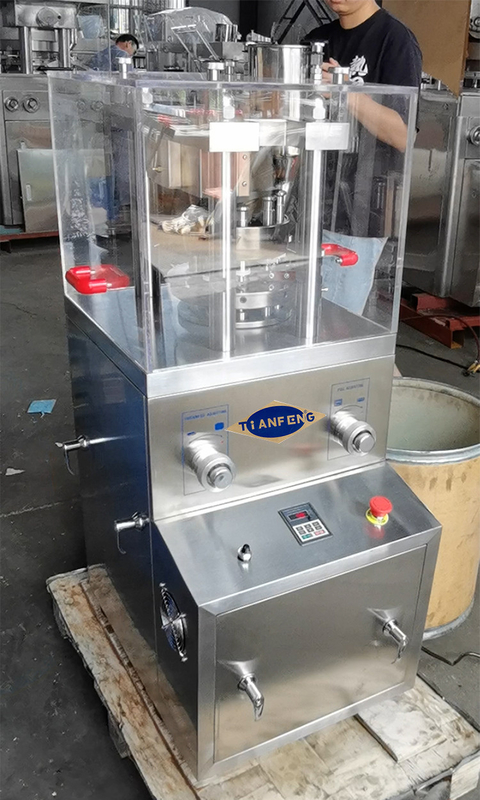

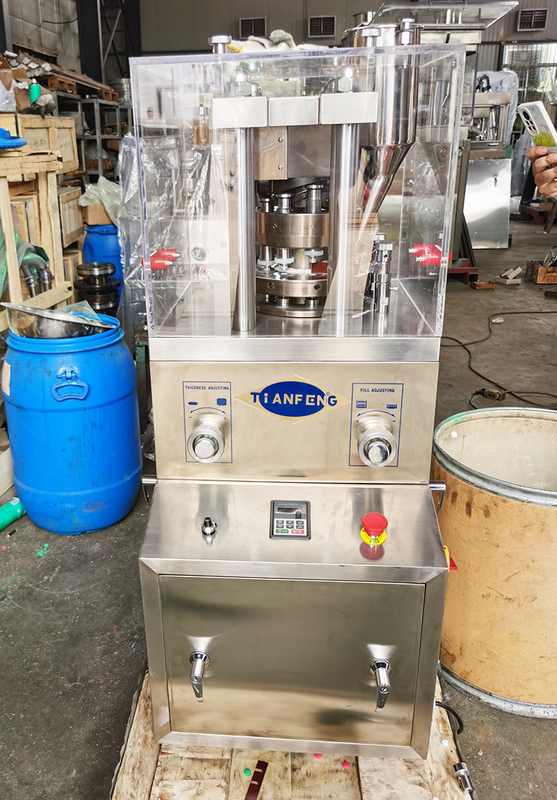

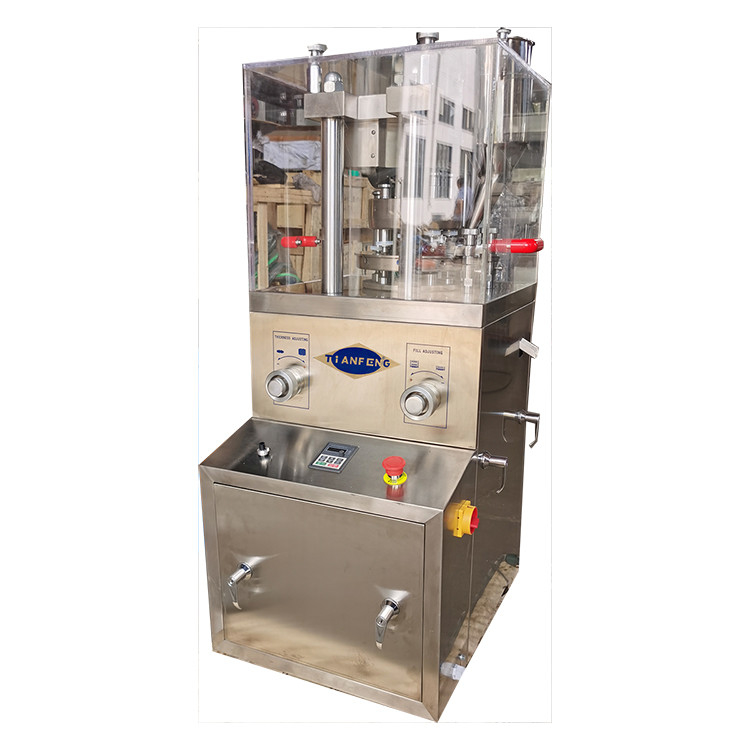

GZP9 rotary tablet press machine is a singlepress type, continuous automatic tablet press for pressing granular raw materials into tablets. GZP9rotary tablet press is mainly used in pharmaceutical, chemical, food, electronic and other industries. The cover of GZP9 rotary tablet press machine is made of stainless steel with close type. The tablet press machine is made of stainless steel materials which could keep surface luster and prevent from cross pollution, meeting the G.M.P requirement.GZP9 rotary tablet press has transparent windows so that press condition can be observed clearly and the Windows can be opened. Cleaning and maintenance is easier. All the controller and devices are located in one side of the machine, so that it can be easier to operate. All transmission devices are arranged inside the machine, keep the parts clean.
Characteristics
1. The maximum pressure is 60KN.
2. The maximum diameter is 20mm.
3. It is the first selection of laboratory and small batch production.
Technical Parameters
Parameter:
| Model | GZP9 |
| Dies (sets) | 9 |
| Max. Pressure (Kn) | 60 |
| Max. Dia. of tablet (mm) | 12 |
| Max. Thickness of tablet(mm) | 6 |
| Max. Filling Depth (mm) | 15 |
| Max production capacity (pieces/h) | 12600 |
| Rotational diameter (mm) | 2600 |
| Rotational speed of revolving table (r/min) | 0-30 |
| Diameter of middle mould (mm) | 20 |
| Highness of middle mould (mm) | 22.22 |
| Length of up and down punch pole (mm) | 19 |
| Length of up punch pole (mm) | 133.4 |
| Length of down punch pole (mm) | 133.4 |
| Overall dimensions (mm) | 480×635×1100 |
| Net weight (KG) | 398 |
| Motor (KW) | 2.2 |
| Voltage(V) | 380/220V |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped GZP9 rotary tablet press machine by sea.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
A: We are a manufacturer,who has rich experiences in food, drinks , medical and cosmetic industrials,
we offer OEM services in the last over 30 years, and now we have our own brands and own designed machines for sale!
A: Generally all machines can be ready and shipped in 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
A: We have been specialized in tablet press and packing machine for more than 10 years,and until now have exported mahcines to more than 30 countries.
A:Sure ! We will do our best to teaching you how to use the machine.
A:Certainly,.We have engineers available to service overseas.
A: 1.Competitive price
2. Excellent technical support
3.Best service.
