Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZP5 ZP7 ZP9
Video
Video
Products catalogues, can download here
Shanghai Tianfeng products catalogues.pdf

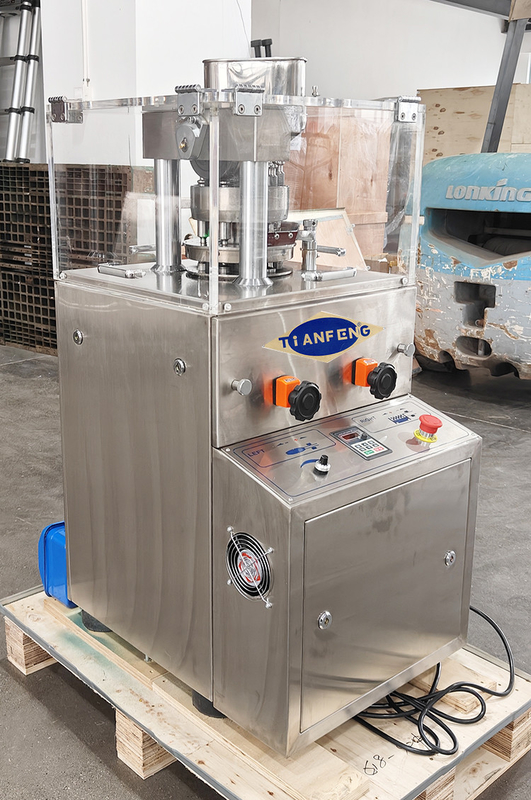

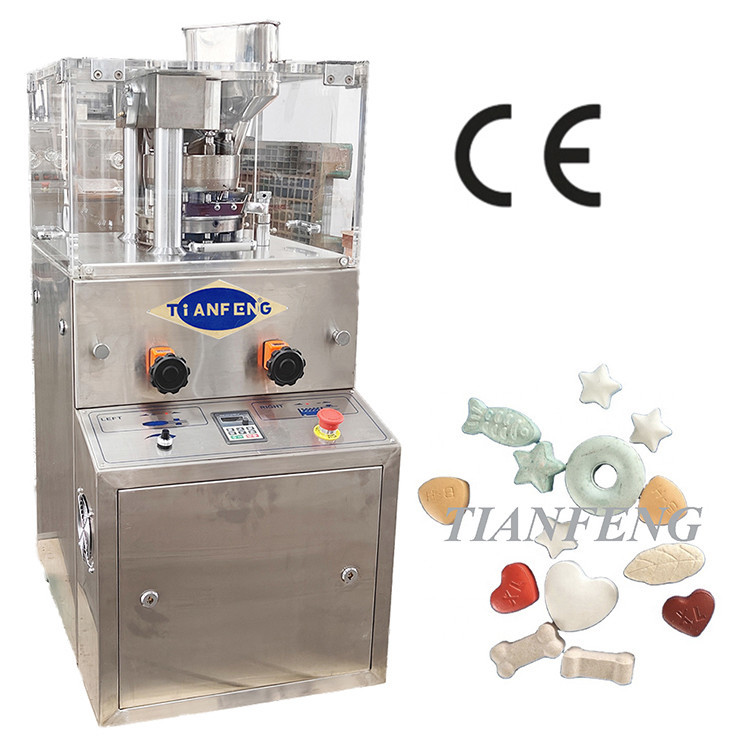

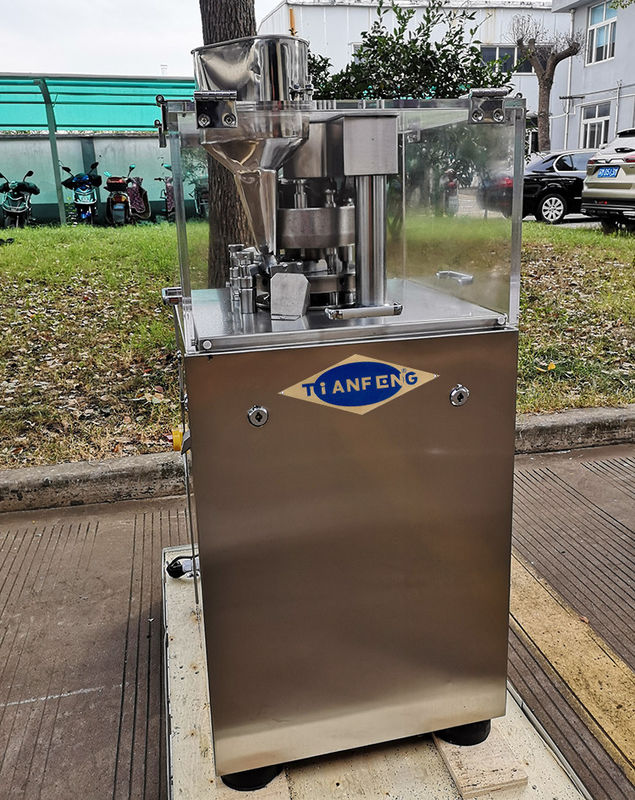

ZP5/7/9 Type Small Rotary Tablet Press Machine ( pharmaceutical machinery, pharmaceutical equipment)
Automatic Tablet Press Machines from Shanghai Tianfeng are based upon a proven design . This is due to its robust construction and durability, having a maximum compression force of 60kN.
ZP5/7/9 Type Small Rotary Tablet Press Machine are manufactured to the highest standards and compliant with current GMP and CE standards .
Products introduction

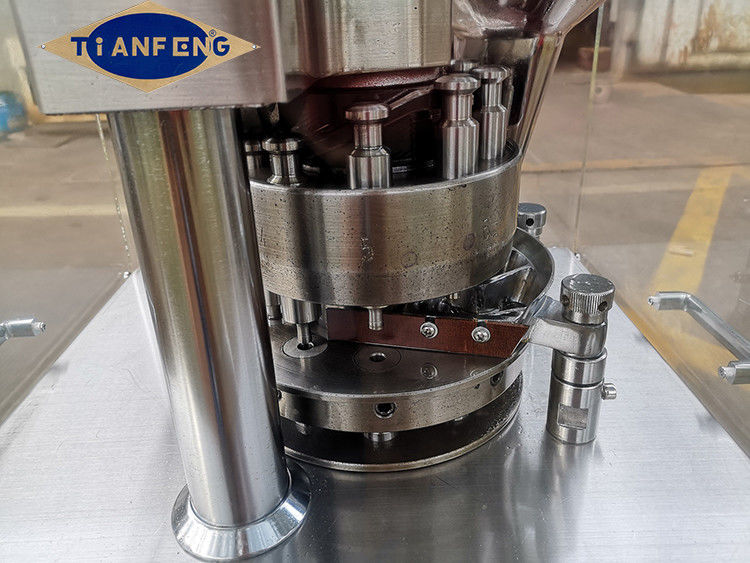

1) ZP 5/7/9 small rotary tablet press (Tablet Compression machine) is a single-sided press machine.
2) It continues automatic working for pressing powder raw materials into tablets. It is mainly used in pharmaceutical, chemical, food and electronic industries.
3) The cover of ZP 5/7/9 rotary tablet press is made of stainless steel with close type. The tablet press machine is made of stainless steel materials which could keep surface luster and prevent from cross pollution.
4) ZP 5/7/9 punching automatic rotary tablet press meets GMP requirement.
5) Easy cleaning and maintenance.
6) The speed is adjustable.
7) An overload protection unit is included in the system to avoid the damage of the punches and apparatus. When overloaded, the machine stops automatically. This machine also has electronic magic driver and other safety protection device which can be adjusted and operated when running.
Technical Parameters of ZP 5/7/9 rotary tablet press
| Model | ZP-5 | ZP-7 | ZP-9 |
| Dies (sets) | 5 | 7 | 9 |
| Max. Pressure (KN) | 60 | ||
| Max. Dia. of tablet (mm) | 20(special 22) | ||
| Max. Filling Depth (mm) | 15 | ||
| Thickness of largest tablet (mm) | 6 | ||
| Turret speed (r/min) | 30 | ||
| Production capacity (pc/h) | 9000 | 12600 | 16200 |
| Motor Power(KW) | 2.2 | ||
| Overall dimensions(mm) | 580*730*1200 | ||
| Net weight (kg) | 320 | ||
Step 1: Pack it in a simple and easy-to-assemble form.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
