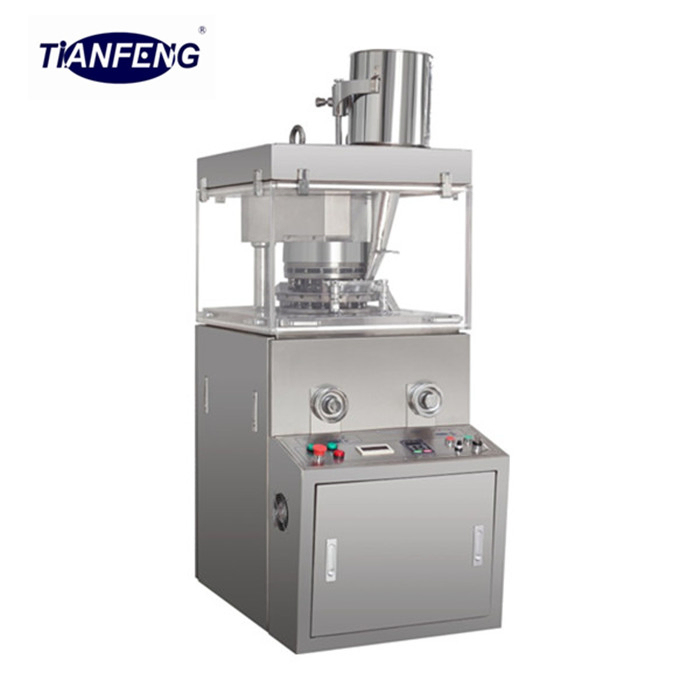

ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

ZP15D Rotary Tablet Press Machine

15 Dies Tablet Press Machine

60KN Max Pressure Pill Press Machine

Request A Quote

ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

Product Details

Model NO.:

ZP15D

Voltage:

380V

Dies Sets:

Max Pressure:

60 Kn

Max Tablet Diameter:

22 Mm

Max Fill Depth:

15 Mm

Max Tablet Thickness:

6 Mm

Production Capacity:

35000 Pcs/h

Turret Speed:

37 R/min

Motor Power:

2.2 KW

Motor Speed:

960 Rpm

Overall Size:

615 X 890 X 1,415 Mm

Weight:

700 Kg

Material:

Stainless Steel

Lubrication Type:

Oil-immersed

Payment & Shipping Terms

Minimum Order Quantity

Price

7500

ZP15D Rotary Tablet Press Machine with 15 Dies 60kn Max Pressure and 22mm Max Diameter for Candy and Pharmaceutical Industries

Get Best Price

ZP15D Model Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for Pharmaceutical and Chemical Industries

Get Best Price

ZP15D Rotary Tablet Press Machine with 15 Dies 60KN Max Pressure and 22mm Max Tablet Diameter

Get Best Price

ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

Get Best Price

86-21-57664559

Contact Now

Product Description

ZPW15D Rotary Tablet Press

Main Application

This single-press type, continuous automatic tablet press converts granular raw materials into tablets. Primarily used in the pharmaceutical industry, it also serves chemical, food, electronic, plastic, and metallurgical applications.

Operating Principle

Fully-enclosed stainless steel exterior meets G.M.P requirements
Transparent windows allow clear observation of press conditions and facilitate easy cleaning and maintenance
Capable of producing round tablets, various geometric shapes, double-layer tablets, annular tablets, and tablets with impressed letters on both sides
Centralized control panel and devices on one side for simplified operation
Integrated overload protection system safeguards punches and apparatus from damage
Fully-enclosed oil-immersed worm gear drive ensures long service life and prevents cross contamination

Technical Specifications

Dies (sets)	15
Max. Pressure (kN)	60
Max. diameter of tablet (mm)	22
Max. Depth of fill (mm)	15
Max. Thickness of largest tablet (mm)	6
Production capacity (pcs/h)	35,000
Turret speed (r/min)	37
Motor power (kW)	2.2/960, 380V/50
Overall dimensions (mm)	615 × 890 × 1,415
Weight (kg)	700
