Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZP45A ZP41F
Main Working principles:

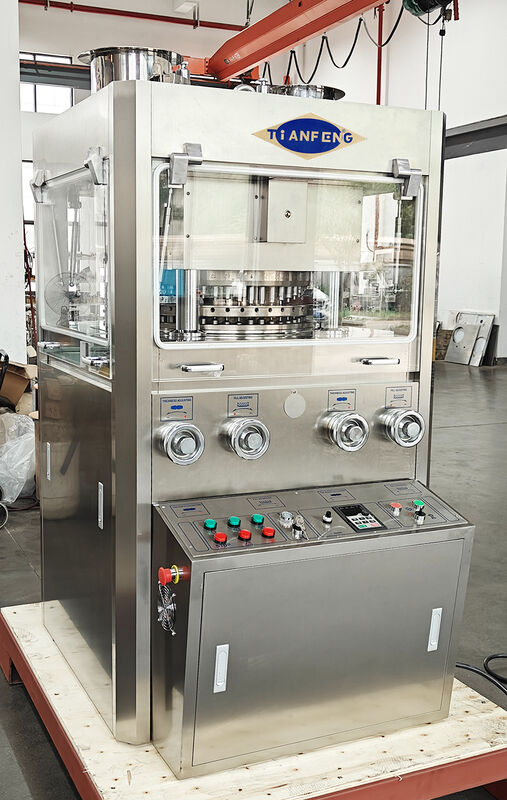

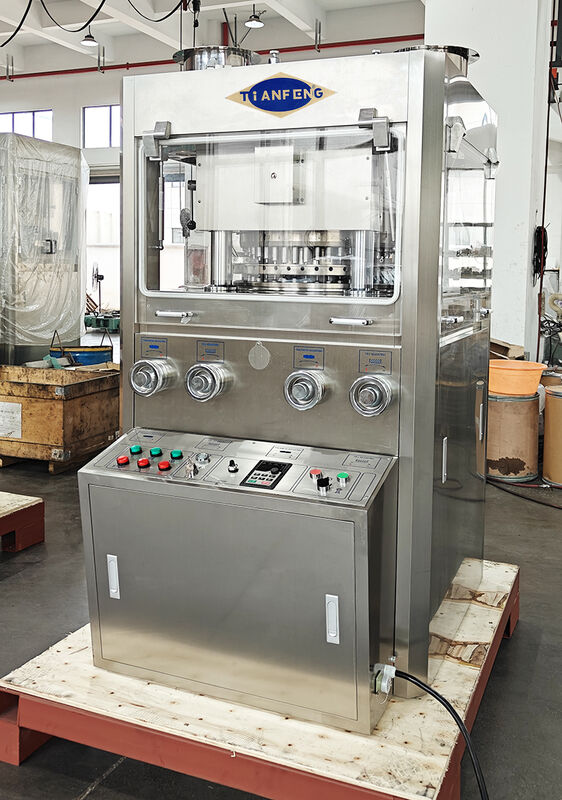

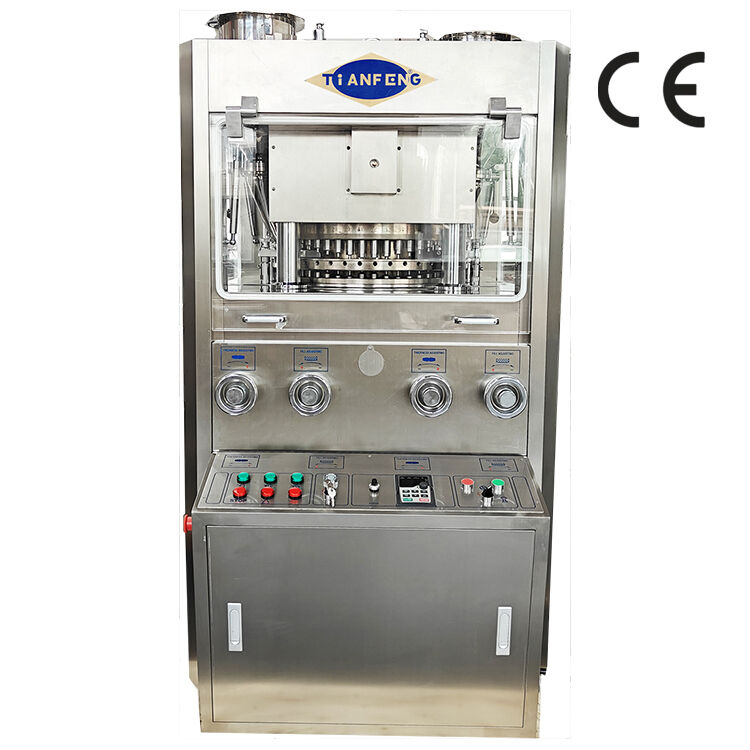

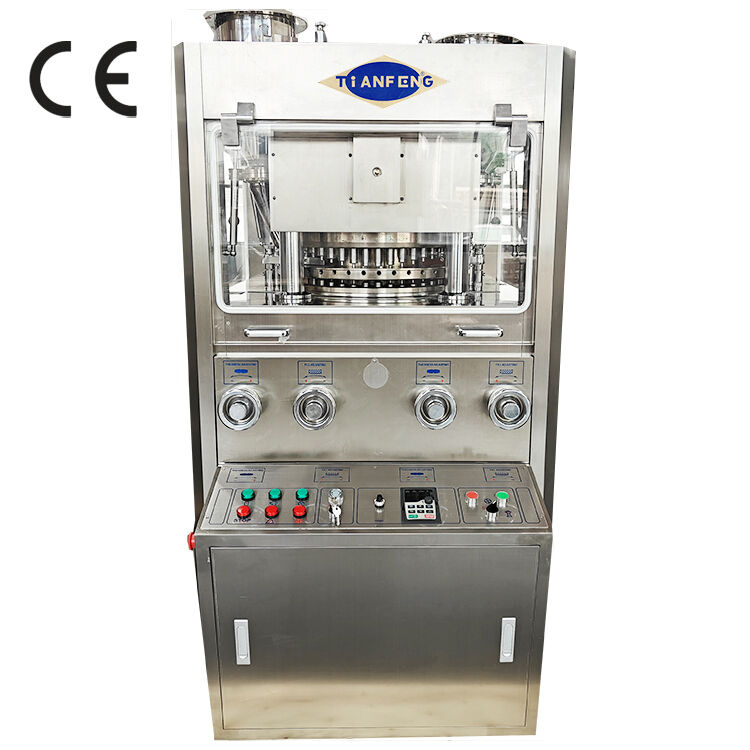

1. The cover of this tablet press machine is made of stainless steel with close type. The inner tablet surface is also made of stainless steel materials which could keep surface luster and prevent from cross pollution, meets GMP requirement.
2. The compression area is enclosed with transparent organic glass. Through the transparent protective cover can see the mechanical operation of the situation clearly, and can open all of them, easy to cleaning and maintenance.

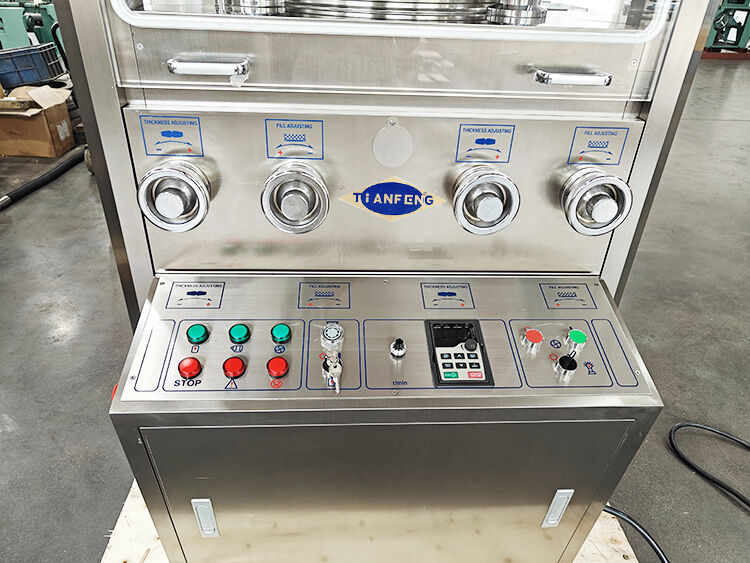

3. Mechanical and electrical integration, variable speed operation.
Features:
Technical parameter:
| Model | ZP-45A | ZP-41F |
| Dies (sets) | 45 | 41 |
| Max. Pressure (KN) | 100 | 100 |
| Max. dia. of tablet (mm) | 13(special 16) | 16(special 22) |
| Max. Depth of fill (mm) | 15 | 15 |
| Max. Thickness of largest tablet (mm) | 6 | 6 |
| Rotational speed of revolving table(r/min) | 14-45 | 14-45 |
| Max. Capacity(pcs/h) | 243000 | 221400 |
| Diameter of rotary table (mm) | 460 | 460 |
| Diameter of middle bmould (mm) | 26 | 30 |
| Length of up and low punch pole (mm) | 22 | 22 |
| Length of the lower punch pole(mm) | 115 | 115 |
| Dimension (L*W*H)(mm) | 910x1220x1670 | 910x1220x1670 |
| Motor(KW) | 7.5kW 4L | 7.5kW 4L |
| Net Weight | 1950 | 1950 |
![]()
Q: Are you trading company or manufacturer ?
We are factory, all machines are made by ourselves, and we have our R&D team so we also provide customize service and OEM.
Q: What Machine we make?
We engaged in making machines for the whole tablets production line and capsule production lines.
Q:What is your delivery time?
30 working days for Standard machine, We ship Monday through Saturday.
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special double layertablet press machine ZP45A ZP41F by sea.
