Dual Track Wear Resistant Pharmaceutical Pill Press Machine ZP-41F 41 Dies

Tablet weight drift usually starts in the turret, not in the feeder. The ZP-41F and ZP-45A dual track pharmaceutical pill press machine answers that with an upper track built from a high strength, wear resistant dual track design, fully enclosed parallel rails and anti breakage, anti drop punch plates. The result is good rigidity, excellent dust prevention and tablet weight that stays inside tolerance through a full shift.

The standard rotary table middle mould plate is machined from high strength OT-500-7 material, with corrosion resistant 2Cr13 stainless steel available as an option for aggressive granules. An automatic oil lubrication system feeds the turret, while the grease circuit is semi automatic and needs only a manual press at set intervals. Together with the oil collection groove on the upper punch, that keeps the wear resistant pharmaceutical pill press machine clean and stable at 100 KN across 41 or 45 stations.

• High strength wear resistant dual track: The upper track uses a dual track design with fully enclosed parallel rails, giving the rigidity that keeps tablet weight stable at 45 r/min
• Anti breakage and anti drop punch plates: Punch plates protect the track and the punches if a punch sticks, reducing downtime and spare part cost on a busy pill press machine
• OT-500-7 mould plate: The standard rotary table middle mould plate is OT-500-7 high strength material, with corrosion resistant 2Cr13 stainless steel as an option

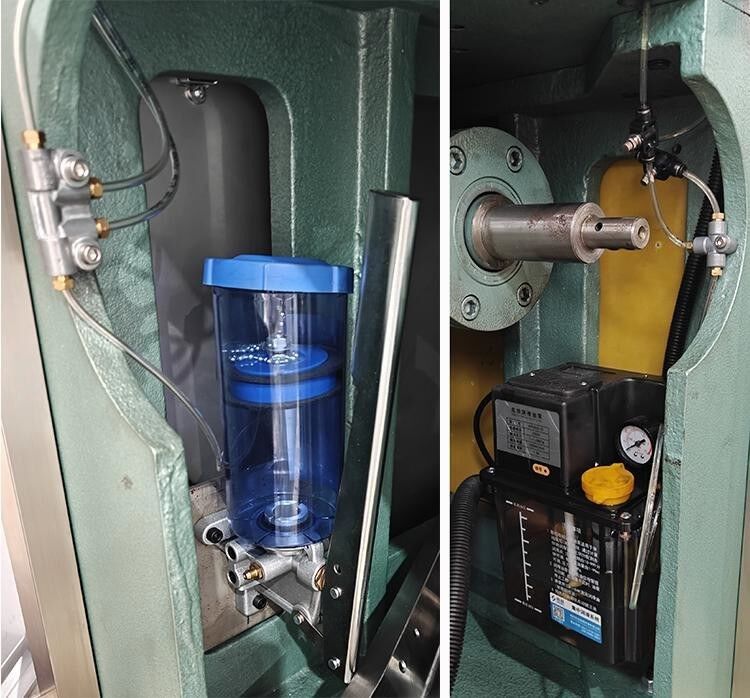

• Automatic oil lubrication: An automatic oil lubrication system feeds the turret; the grease system is semi automatic and requires a manual press at set intervals
• Excellent dust prevention: The enclosed parallel rail design keeps abrasive powder out of the track, which is what protects stability on abrasive and effervescent granules
• 100 KN across 41 or 45 stations: Maximum pressure 100 KN, fill depth 15 mm, tablet thickness up to 6 mm and output up to 221400 or 243000 pcs/h

This dual track pharmaceutical pill press machine suits long, uninterrupted runs of abrasive or high value granules: herbal and plant extract pills, effervescent tablets, camphor balls, sugar and salt pills, veterinary boluses, chemical catalyst tablets and nutraceutical caplets.

Plants choose this machine when tablet weight consistency is audited batch after batch, since the rigid track and enclosed rails remove the two most common sources of drift, track wear and powder ingress.

The pharmaceutical pill press machine ships in an export wooden case with rust preventive film, a cushioned base and a labelled spare parts kit. A factory run test documents capacity, tablet weight variation and track condition, and the CE certificate, material certificates and English manual are included.

Tianfeng has built tableting machinery in Shanghai since 2001 with 60 to 70 percent of production exported, so every unit is supported by a 13 month warranty, stock of track, punch and die spares for ten years and engineers available for overseas service and operator training.
