Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE and ISO
Model Number:
ZPW-4-2 ZPW-4-4 ZPW-4-6
Video

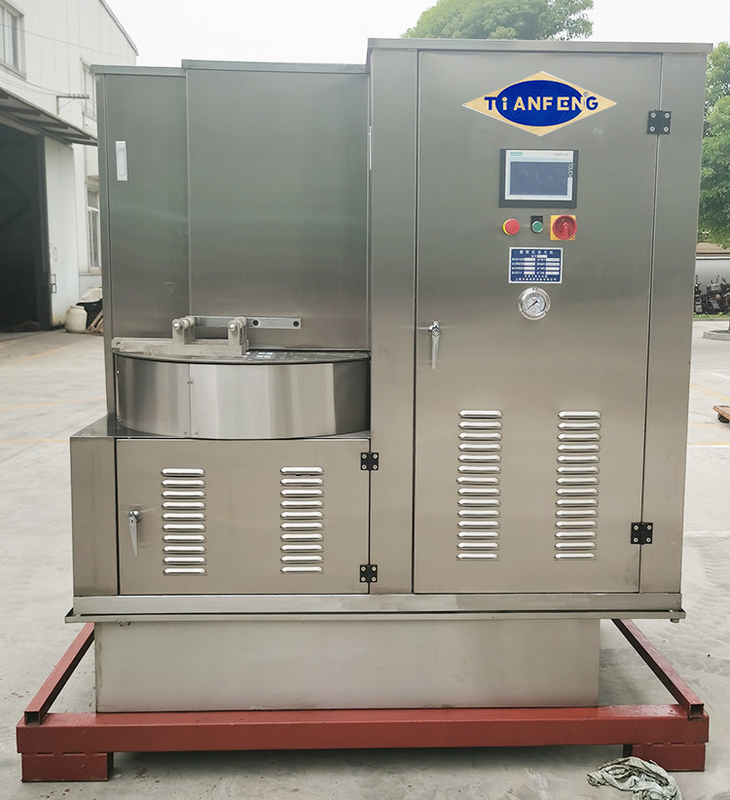

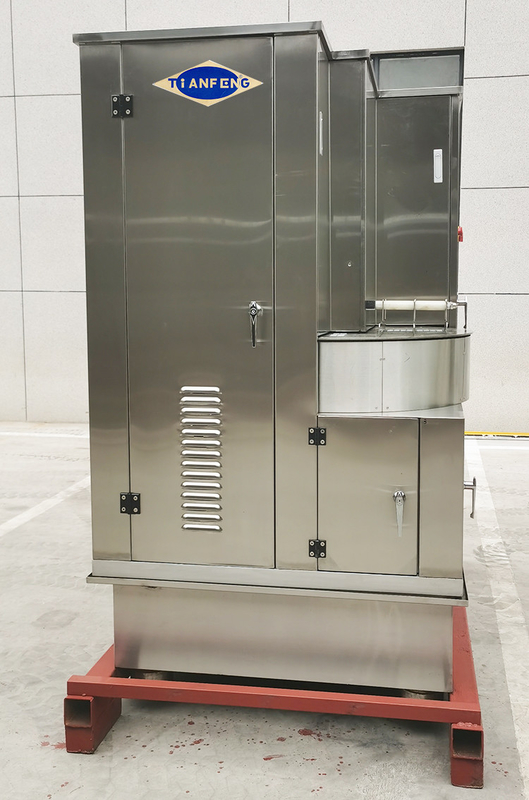

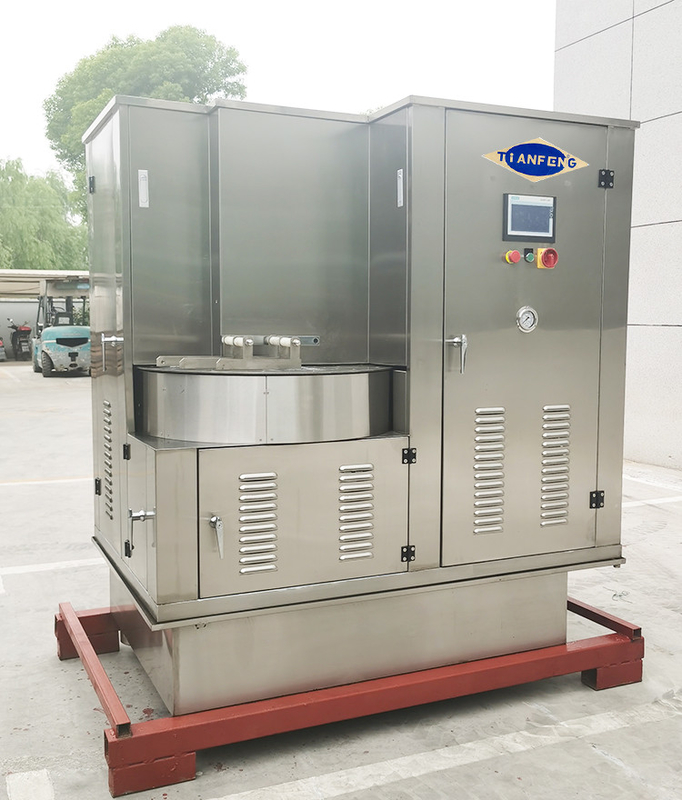

ZPW-4-4 compressed Biscuit food machinery ZPW-4-2 Tablet compression Machine

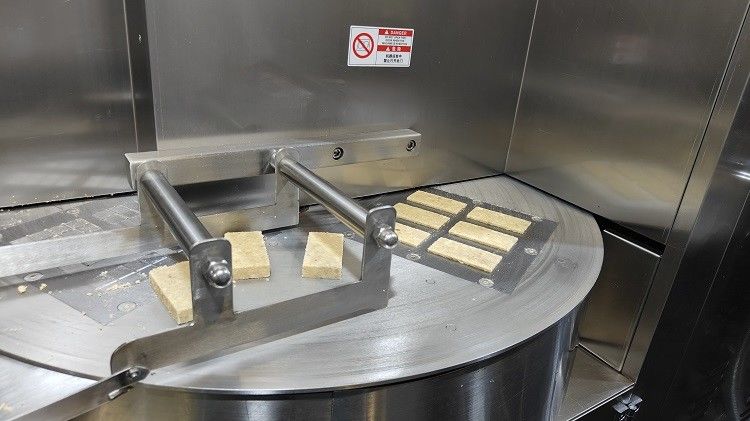

ZPW-4-4 rotary tablet press is a type of food machinery, which is used to produce compressed biscuits for military and civilian use. Compressed biscuit production involves five main processes, that is, biscuit baking, powderizing, mixing, compressing and packaging. The rotary tablet press plays an important role in making compressed biscuits.
Technical Parameters of Rotary Tablet Press
| TYPE | ZPW4-4 | ZPW4-2 | ZPW-4-6 |
| Max. Compression Pressure | 180-250 | 180-250 | 180-250 |
| Max. Dia. of Tablet(mm) | According to customer’s requirement | According to customer’s requirement | |
| Max. Filling Depth (mm) | 40 (Adjustable) | 40 (Adjustable) | 40 (Adjustable) |
| Max. Thickness of Tablet(mm) | 10-30 | 10-30 | 10-30 |
| Maximum Working Diameter (mm) | 1030 | 750 | 1080 |
| Turret Speed(r/min) | 7 | 8 | 7 |
| Production Capacity(pc/h) | 6720 | 3840 | 10080 |
| Motor(Kw) | 7.5-11KW | 7KW | 11KW |
| Overall Size(mm) | 1750*1200*1810 | 1240*920*1710 | 1980*1300*1960 |
| Net Weight(Kg) | 2500 | 2000 | 3000 |
Q: Are you trading company or manufacturer ?
We are factory, all machines are made by ourselves, and we have our R&D team so we also provide customize service and OEM.
Q: What Machine we make?
We engaged in making machines for the whole tablets production line and capsule production lines.
Q:What is your delivery time?
30 working days for Standard machine, We ship Monday through Saturday.
