Place of Origin:
SHANGHAI, CHINA
Brand Name:
Tianfeng
Certification:
CE ISO
Model Number:
ZP15E ZP17E
Zp17e Smallest 2 Layers Tablet Press Machine
The main technical parameters:
| Die number (station) | 17 |
| Maximum tablet pressure (kn) | 60 |
| Maximum tablet diameter (mm) | 20 |
| The maximum filling depth (mm): | 17 |
| Maximum thickness (mm) | 7 |
| Production (pcs/h) | 34680 |
| Turntable speed (r/min) | 34 |
| Middle mold outside diameter (mm) | 32 |
| Mould height (mm) | 22 |
| Upper and lower punch diameter (mm) | 26 |
| Punch length (mm) | 115 |
| Motor power r (kW) | 3/960,380V/50 |
| Overall size (mm) | 615x890x1415 |
| Host weight (kg): | 700 |

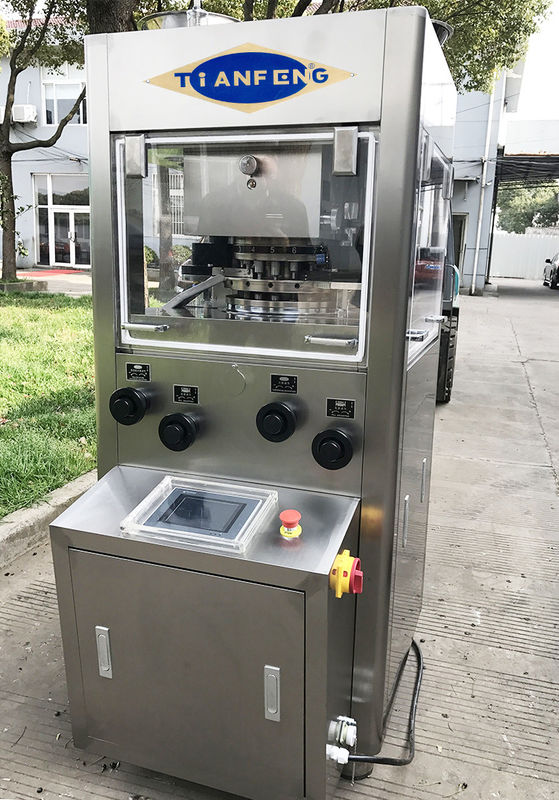

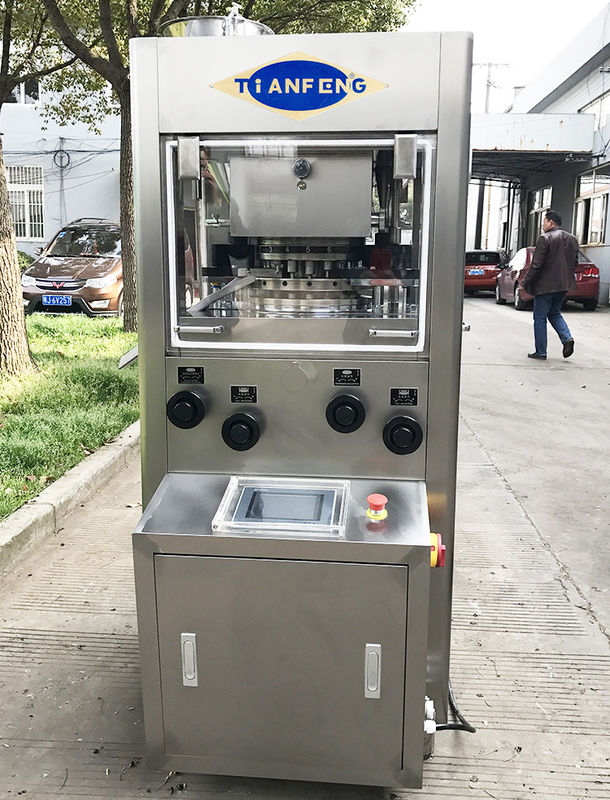

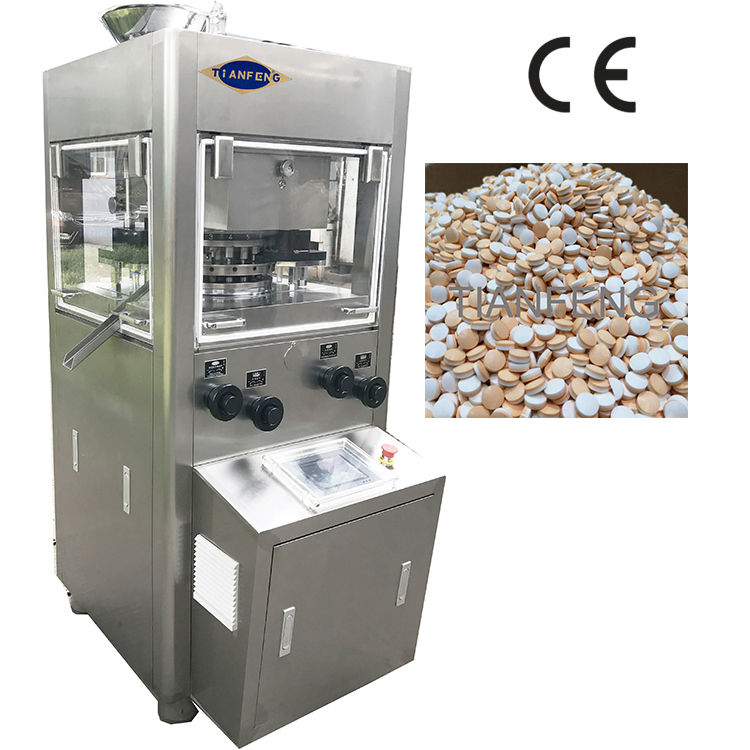

ZP-17E is a double layer automatic rotary continuous tablet press. It compresses granular raw materials into various common and shaped pieces. Mainly used in electronics, food, daily necessities, pharmaceutical and other industrial sectors, the outer casing is fully enclosed, the material is stainless steel, in line with GMP standards. Equipped with a transparent observation window, it can clearly see the working condition of the machine and can be fully opened, which is easy to be clear and maintained inside
Characteristics:
This machine has the characteristics of large pressure, large range of compression, and can press ordinary and special-shaped, ring-shaped, two-color and other shapes of tablets, especially suitable for multi-variety and small batch production.

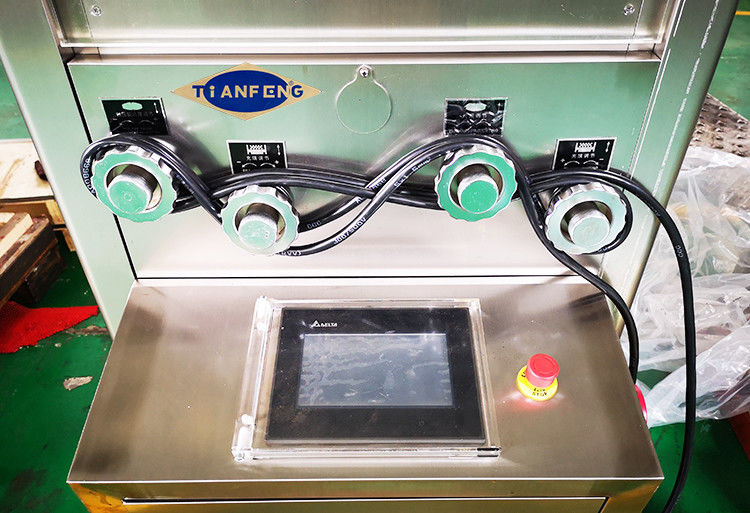

Mechatronics, all controllers and adjustments are concentrated on one side of the body for easy operation. Equipped with pressure overload protection to avoid machine damage.

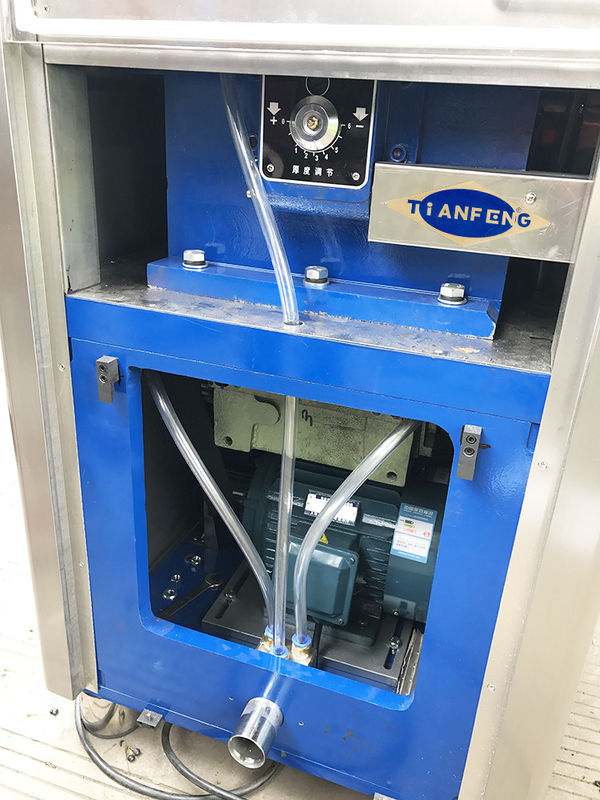

The transmission mechanism with oil-intrusive lubrication is sealed under the body to extend the service life and avoid cross-contamination.
The die can be used with the ZP17 tablet press.
We provide comprehensive one-stop service to ensure customers receive quality products and excellent support:
Shanghai Tianfeng Pharmaceutical Machinery Co., Ltd. specializes in designing and manufacturing high-quality pharmaceutical machinery that meets GMP standards. Our product line includes:
Our products serve pharmaceutical, food, chemical, electronics, and metallurgy industries across China and Southeast Asia. We are committed to quality with our management motto: "Develop through quality; strive for survival through quality".
