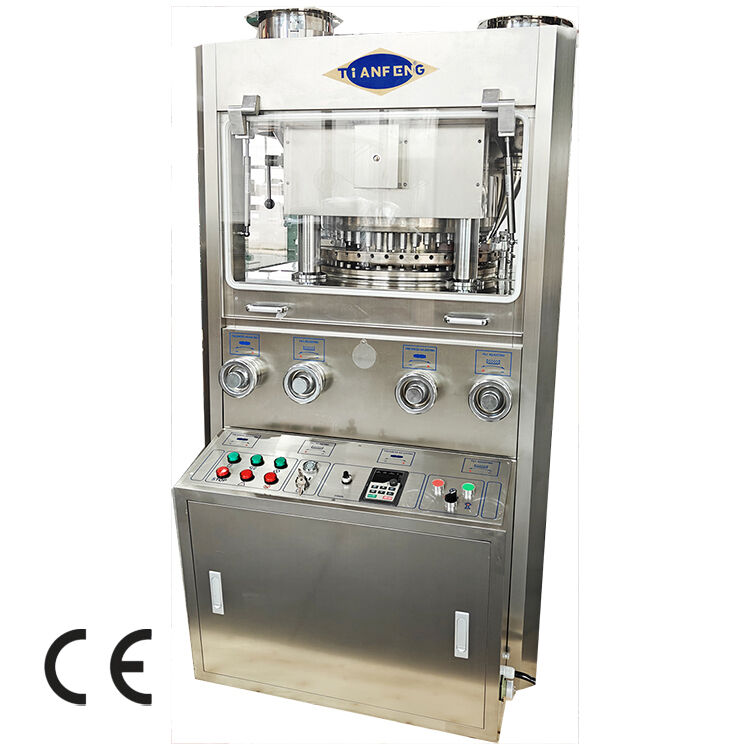

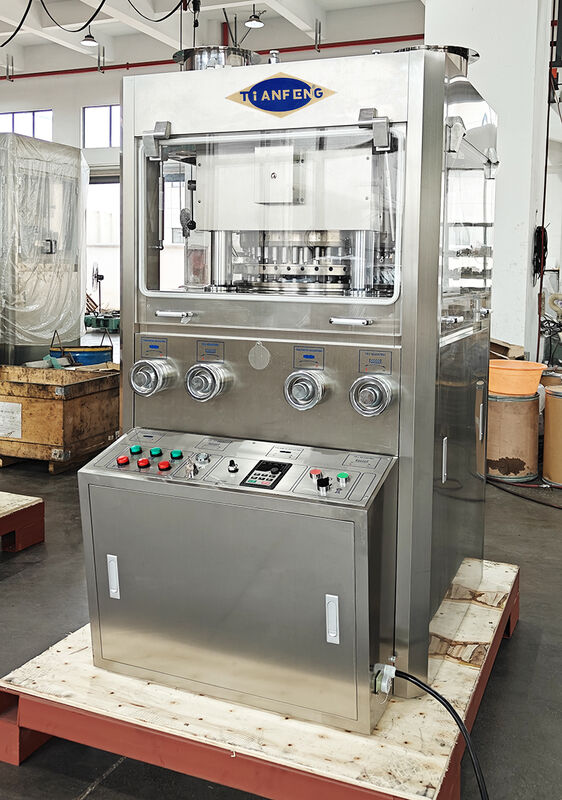

ZP-45A / ZP-41F Rotary Tablet Press
Overview
The ZP-45A and ZP-41F are two high-efficiency, stable rotary tablet presses, designed to comply with GMP standards. They are suitable for the precise tablet production requirements in industries such as pharmaceuticals, food, and chemicals. The equipment integrates an automatic lubrication system, a fully enclosed structure, and advanced electromechanical control technology.
Working Principle
1. Fully Enclosed and Clean Design: Both the external housing and internal work surface are made of stainless steel, ensuring a glossy finish, easy cleaning, and effective prevention of cross-contamination.
2. Visualized Compression Zone: The compression zone is equipped with a fully transparent acrylic protective cover, allowing operators to observe the machine's operation directly. The cover can be fully opened, facilitating easy cleaning, maintenance, and servicing of the internal components.
3. Intelligent Control System: Features an electromechanical integrated design with variable frequency drive (VFD) for stepless speed regulation and stable operation.
Key Features

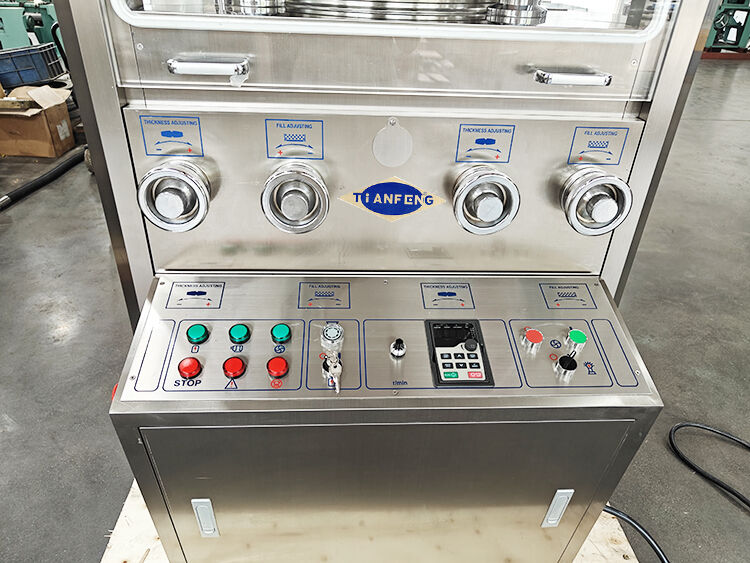

1. User-Friendly Operation: Offers push-button VFD speed control. A PLC touchscreen control system is available as an option, providing a user-friendly interface for more intuitive parameter setting and monitoring, meeting different levels of automation needs.

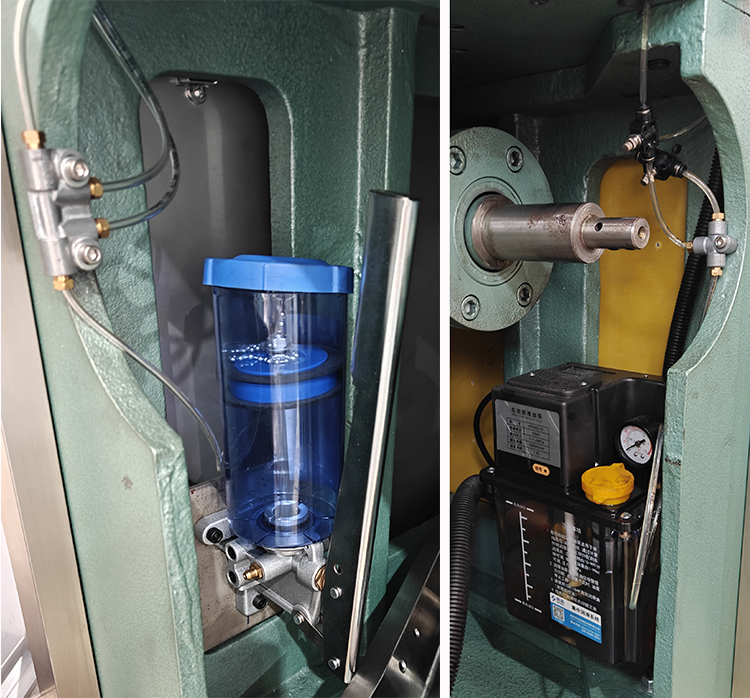

2. Lubrication System:
Automatic Lubrication: Equipped with an automatic oil circulation lubrication system for key transmission components.
Auxiliary Lubrication: The grease lubrication system is semi-automatic, requiring periodic manual pressing for supplementary lubrication.
3. High-Quality Materials:
Standard Configuration: The core component, the turret middle die plate, is made of high-strength OT-500-7 material for durability.
Optional Configuration: Can be upgraded to the more corrosion-resistant 2Cr13 stainless steel material, suitable for special materials.
4. Stable and Reliable Operation:The upper guide rail uses a high-strength, wear-resistant dual-track design with a parallel fully enclosed structure, offering good rigidity and excellent dust prevention. Equipped with anti-punch breakage and anti-punch drop plates, further ensuring punch safety and smooth operation.
5. Anti-Contamination Design: The upper punches are designed with oil collection ring grooves. Installing collection rings effectively captures potential seeping lubricant and contaminated powder, ensuring maximum cleanliness in the compression zone and tablet quality.
Technical Parameter Comparison
| Parameter | Model ZP-45A | Model ZP-41F |
|---|---|---|
| Number of Stations (sets) | 45 | 41 |
| Max. Pressure (kN) | 100 | 100 |
| Max. Tablet Diameter (mm) | 13 (special up to 16) | 16 (special up to 22) |
| Max. Fill Depth (mm) | 15 | 15 |
| Max. Tablet Thickness (mm) | 6 | 6 |
| Turret Speed Range (rpm) | 14 - 45 | 14 - 45 |
| Theoretical Max. Output (tablets/hour) | 243,000 | 221,400 |
| Turret Diameter (mm) | 460 | 460 |
| Middle Die Diameter (mm) | 26 | 30 |
| Upper/Lower Punch Diameter (mm) | 22 | 22 |
| Lower Punch Length (mm) | 115 | 115 |
| Overall Dimensions (L×W×H, mm) | 910 × 1220 × 1670 | 910 × 1220 × 1670 |
| Motor Power | 7.5 kW, 4-pole | 7.5 kW, 4-pole |
| Net Weight (kg) | 1950 | 1950 |
The Tianfeng Pill Press, available in models ZP45, is a versatile and reliable tablet compression machine designed for a wide range of pharmaceutical and cosmetic applications. Certified with CE and ISO standards and proudly manufactured in Shanghai, China, this pill making machine ensures high-quality performance, precision, and safety for various production needs.
This tablet compression machine is ideal for pharmaceutical companies producing medicinal tablets for different therapeutic areas, including vitamins, supplements, antibiotics, and other oral medications. Its robust design and efficient operation make it suitable for both small-scale laboratories and large-scale manufacturing units. With a minimum order quantity of just one unit, Tianfeng offers flexibility to startups and established businesses alike.
Beyond pharmaceuticals, the Tianfeng pill press is also highly effective as a cosmetic powder press machine. It can be used to produce compact powders, blushes, and other pressed cosmetic products with consistent shape and density. This makes it an excellent choice for cosmetic manufacturers looking to expand their product lines or improve production efficiency.
Thanks to its high supply ability of 50 units per month and a delivery time of 25 working days, the Tianfeng pill making machine can meet urgent production demands without compromising quality. The machine is securely packaged in a plywood export wooden case to ensure safe delivery to customers worldwide.
Payment terms are flexible, including T/T, Western Union, and L/C, accommodating various customer preferences. Interested buyers are welcome to consult for pricing details and further customization options. Whether you are in the pharmaceutical or cosmetic industry, the Tianfeng tablet compression machine represents a smart investment for reliable, efficient, and precise tablet and powder pressing needs.
Our Pharmaceutical Pill Press product is supported by a dedicated technical support and services team committed to ensuring optimal performance and customer satisfaction. We provide comprehensive installation guidance, routine maintenance schedules, and troubleshooting assistance to minimize downtime and maximize productivity.
Our experts are available to offer detailed operational training and user manuals to help you understand the full capabilities of your pill press. We also provide software updates and calibration services to maintain precision and compliance with industry standards.
In addition, we offer repair services and replacement parts to address any technical issues promptly. Our goal is to deliver reliable, efficient, and safe pharmaceutical manufacturing solutions tailored to your needs.
Product Packaging: The Pharmaceutical Pill Press is carefully packaged using high-quality, durable materials to ensure maximum protection during transportation. Each unit is securely wrapped in anti-static foam and placed inside a custom-fitted, sturdy cardboard box. The packaging also includes clear labeling with product information, handling instructions, and safety warnings to comply with regulatory standards.
Shipping: We offer reliable shipping options to ensure timely and safe delivery of the Pharmaceutical Pill Press. Products are shipped via trusted carriers with tracking capabilities. All shipments are handled with care, and insurance is available to cover any potential damages or losses during transit. Our logistics team coordinates shipment schedules to meet customer requirements and complies with all relevant shipping regulations for pharmaceutical equipment.
Q1: What brand and models are available for the Pharmaceutical Pill Press?
A1: The Pharmaceutical Pill Press is available under the brand name Tianfeng, with model number ZP45.
Q2: Is this product certified and where is it manufactured?
A2: Yes, the Pharmaceutical Pill Press is CE and ISO certified. It is manufactured in Shanghai, China.
Q3: What is the minimum order quantity and payment terms for purchasing this pill press?
A3: The minimum order quantity is 1 unit. Payment terms accepted include T/T, Western Union, and L/C.
Q4: What is the supply capacity and delivery time for the Pharmaceutical Pill Press?
A4: The supply ability is 50 units per month, and the delivery time is typically 25 working days.
Q5: How is the Pharmaceutical Pill Press packaged for shipping and what is the price?
A5: The product is packaged in a plywood export wooden case to ensure safe delivery. For pricing, please contact us for a consultation.
